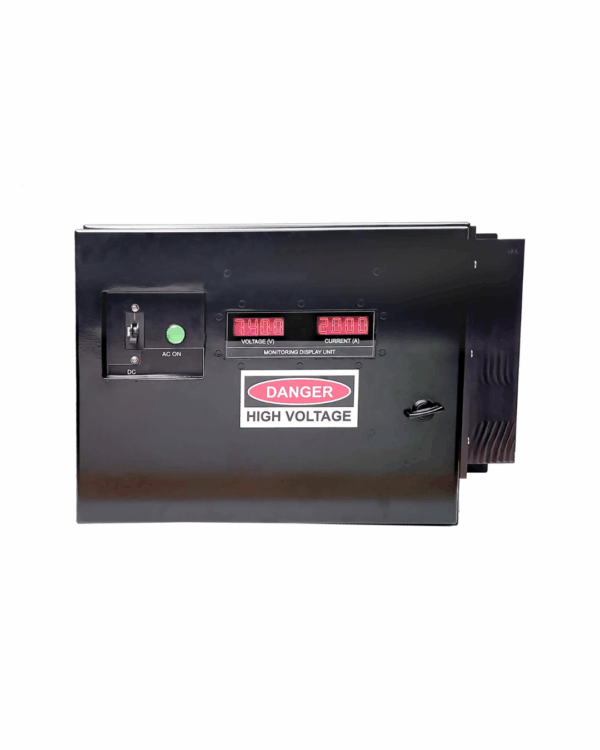

Model 591, PL42 Locomotive 74 VDC Battery Charger
Model 591, PL42 Locomotive 74 VDC Battery Charger

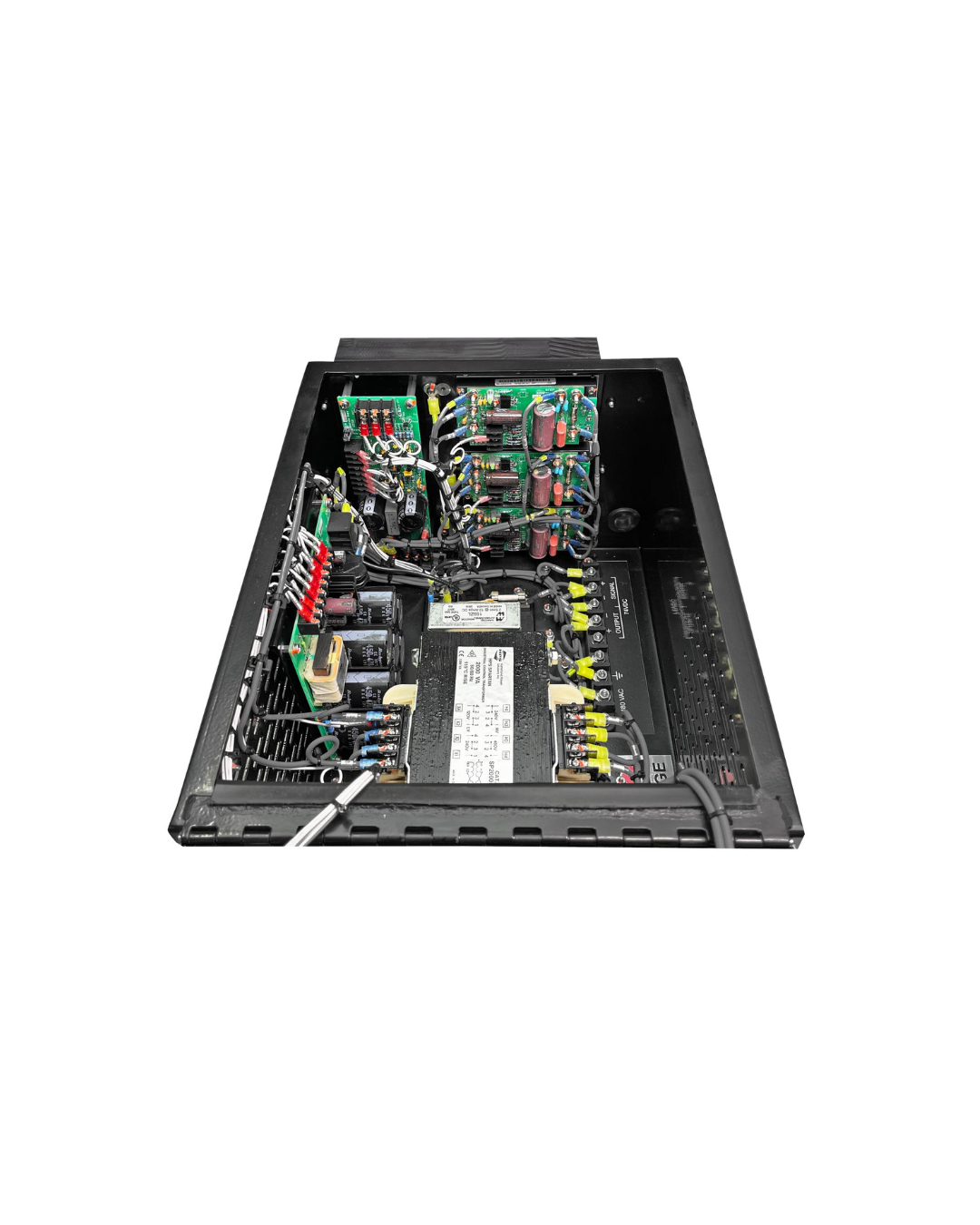

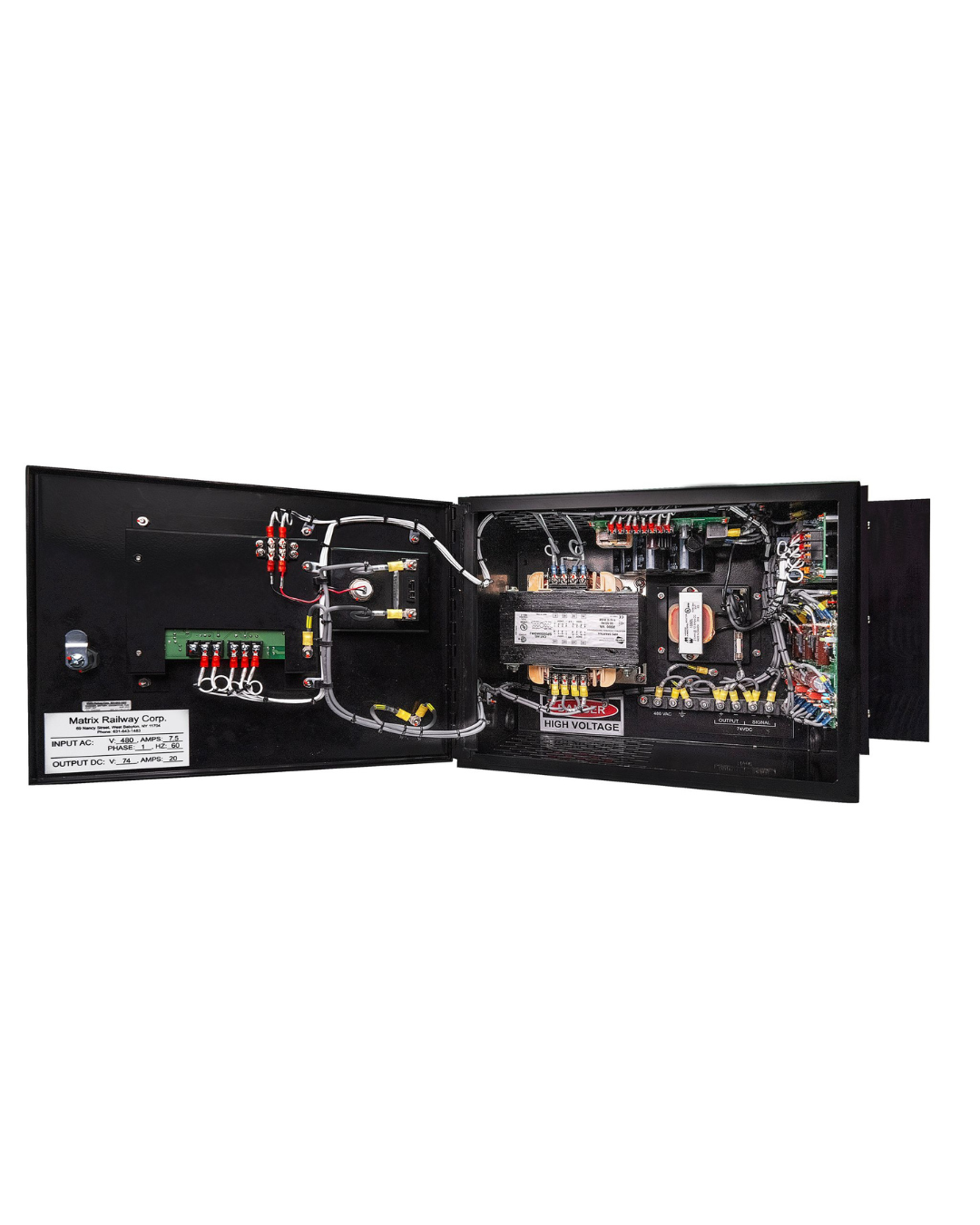

This is a 1500 W Battery Charger Unit.
To request a quote, please create an account
Please refer to specification tab.
Electrical Specifications
| Input Specifications | |
| Input Voltage | PCB Assembly: 220 Vac nominal |
| Battery Charger: 480 Vac | |
| Input Current | Battery Charger: 3.7 A nominal |
| Efficiency | Battery Charger: 85% |
| Input Power Factor | Battery Charger: 0.7 |
| Input Power | Battery Charger 1765 W |
| AC Input | Single Phase AC input |
| Input Frequency | 60 Hz ± 3 Hz |
| Output Specifications | |
| Output Voltage | Float Level: 82.8V ± 1% |
| Output Voltage Range | 66-82.8 Vdc |
| Line Regulation | 2% from min to max input voltage |
| Temperature Coefficient of Output Voltage | 0.01% / °C max |
| Output Current | 20 A |
| Output Power | 1500 W |
| Output Overload | The unit will protect itself in the event of an output overload or continuous short circuit on the output. |
| Output Ripple | 2% |
| Bias Power | 5 V at 5 Watts |
| Protection / Features | |
| Output Over-Voltage | 30-35 V |
| Output Over-Current | 26-35 A |
| Power Module Over-Temperature | 105-130 °C baseplate |
| DC Output Breaker | Battery Charger: 40 A |
Compliance Standards
| Surge Immunity | EN 61000-4-5 |
| Input EMI Conducted / Radiated | EN 55022 Class A |
| Shock & Vibration | EN 50155 Rolling Equipment |
