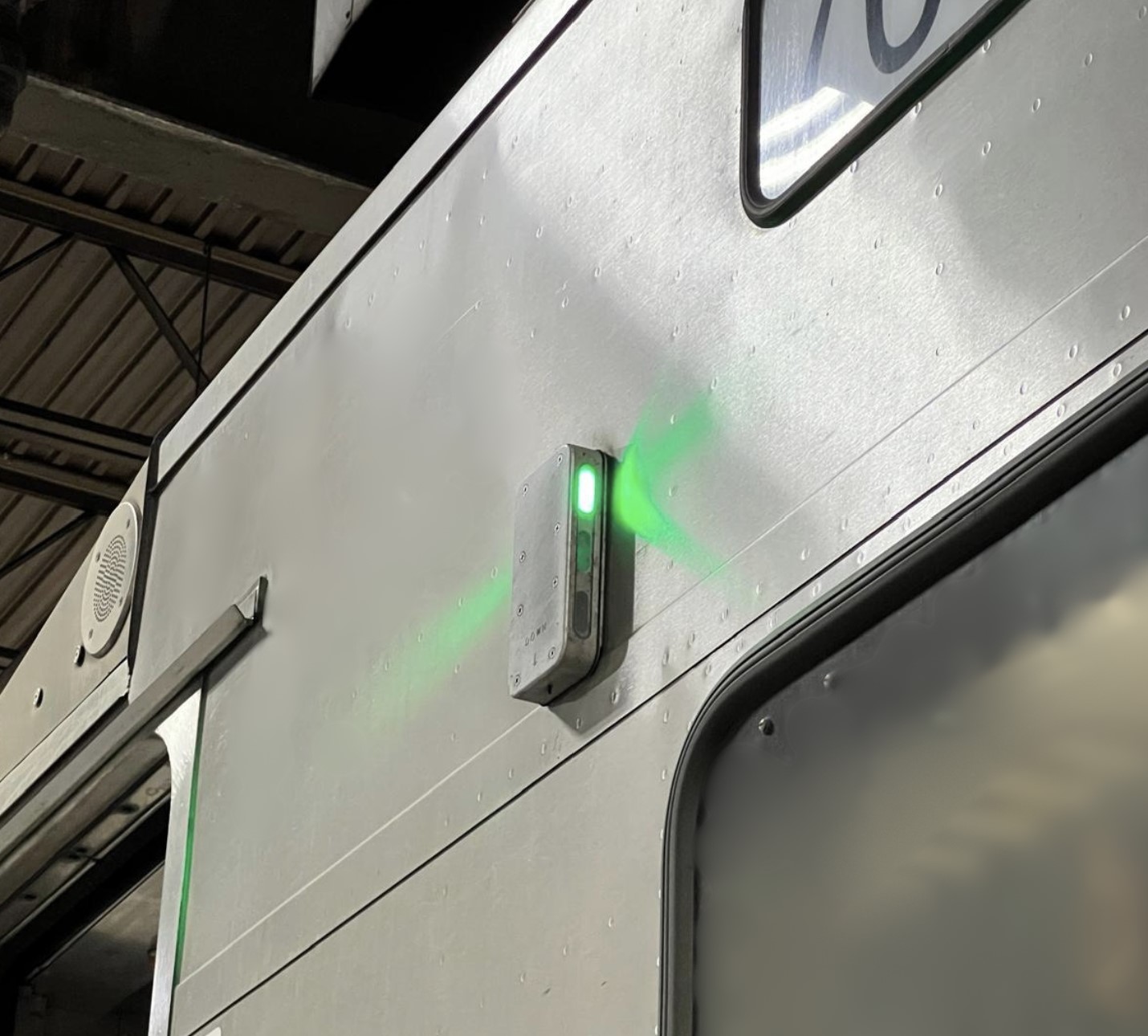

Model 551, LED Brake Light

Model 551, LED Brake Light

SKU: 551-A31440Categories: Exterior Lighting, LED Brake Lights

Matrix Railway new LED Brake Light leads the competition in low profile design and an advanced wide range power supply capable operating at both Industry Voltage Standards, 37.5 and 74 Volts DC.


Product Details

The design is flexible and can be modified to mount on any configuration or package required by the customer. The Light Indicator circuitry is designed to with two redundant circuits so that in case of a failure, operation and safety will be maintained throughout each run.

Electrical Specifications

Nominal Input Voltage 24VDC/37.5 VDC/74VDC
Nominal Input Voltage Range
  • 18 ‐ 30VDC
  • 20 – 50 VDC
  • 60 – 95 VDC
No. of Independent Channels 12 LED Channels
Power 7 Watts
Input Protection Reverse Voltage Protection
High / Low Voltage Protection
Spike and Transient Protection
Warranty 5 Years

Photometric Specifications

Wavelength-Dominant 527 nm / 591 nm / 470 nm
Luminous Intensity 200 Cd
Number of LED 21 LEDs per side

Mechanical Specifications

Size 7.86″ X 4.00″ X 1.12″
Connections Connector
Mount Direct Carbody
