Model 523, LRV LED 3rd Brake Light
Model 523, LRV LED 3rd Brake Light
The LED 3rd Brake Light is interior mounted at both ends of the vehicle, located inside the center bottom of edge of the windshield.
To request a quote, please create an account

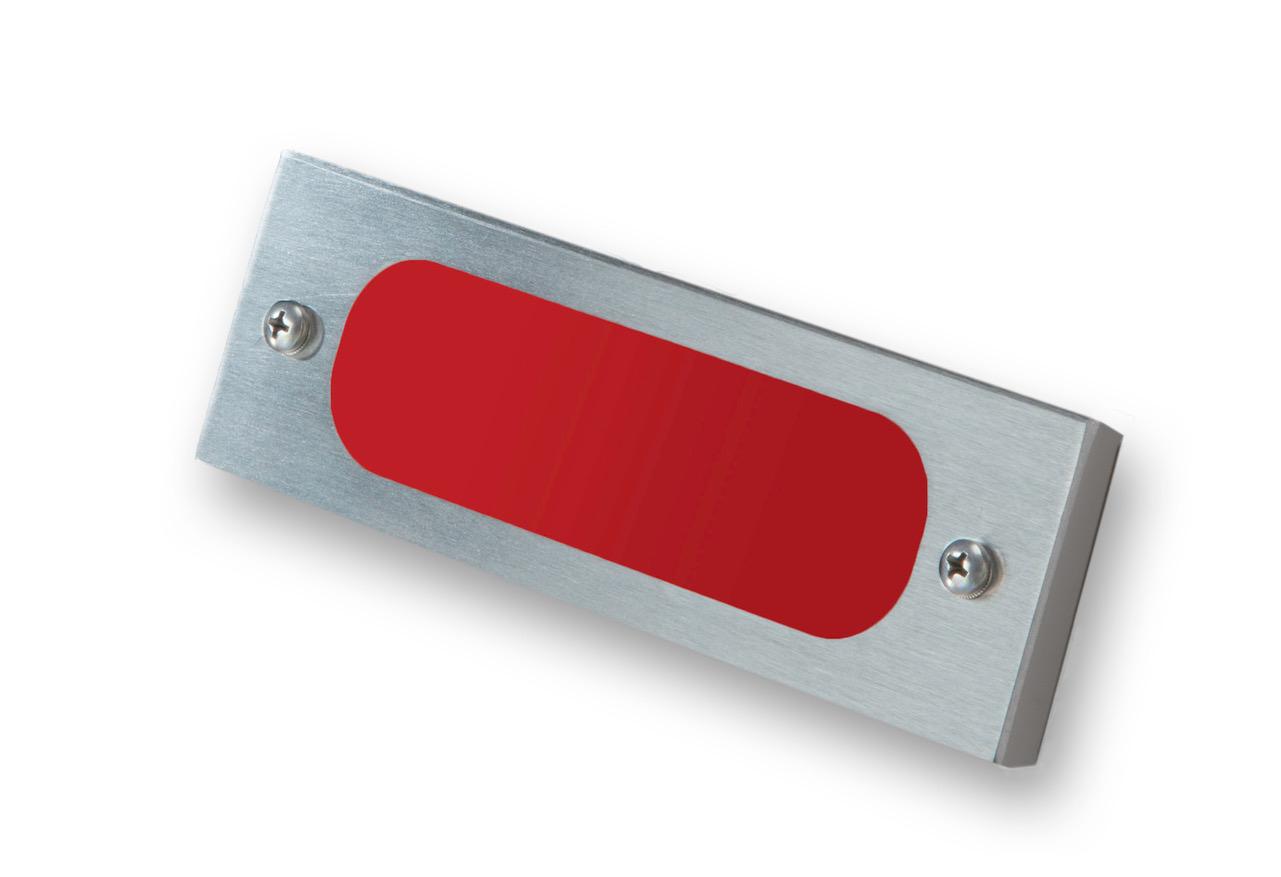

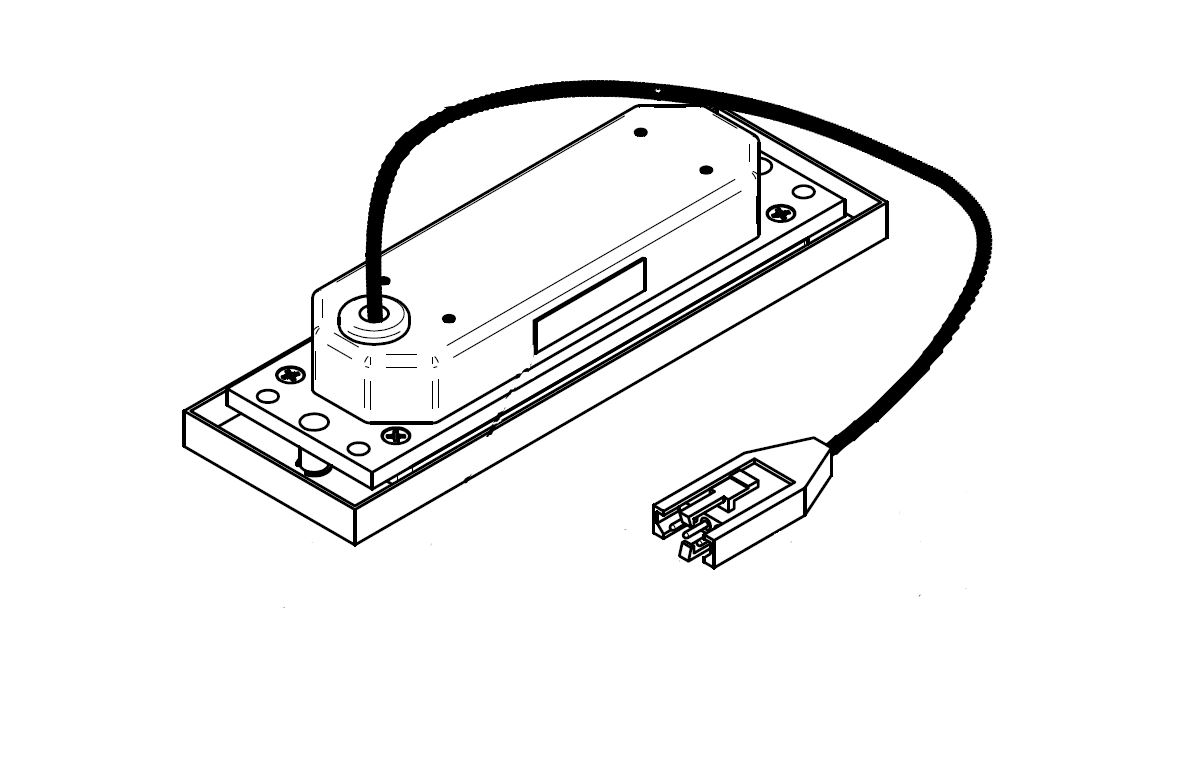

The LED 3rd Brake Light consists of a cover with a red glass lens, a cover gasket, and housing.
Electrical Specifications
| Nominal Input Voltage | 37.5 VDC |
| Nominal Input Voltage Range | 21 ‐ 42 VDC |
| No. of Independent Channels | 4 LED Channels |
| Power | 9 Watts |
| Input Protection | Reverse Voltage Protection |
| High / Low Voltage Protection | |
| Spike and Transient Protection | |
| Warranty | 5 Years |
Photometric Specifications
| Dominant Wavelength | 624 nm |
| CRI | > 80 Ra |
| Luminous Intensity | 4,500 Lm |
| Luminous Efficacy | 150 Lm/W |
| Number of LED | 60 LEDs |
| Viewing Angle | 120 Deg |
Mechanical Specifications
| Size | 7.67″ X 2.300″ |
| Connections | Connector |
| Mount | Direct Ceiling |
EMI/EMC Compliance Standards
| EMI/EMC | 61k Series |
| Electrostatic Discharge | IEC 61000‐4‐2 |
| Radio Frequencies‐Enclosure | IEC 61000‐4‐3 |
| Fast Transients Burst‐Power Ports | IEC 61000‐4‐4 |
| Fast Transient Burst – Signal Ports | IED 61000‐4‐4 2kV |
| Surges – Power Ports | IED 61000‐4‐5 |
| Conducted Immunity, Power Ports | IEC 61000-4-6 |
| Pwr Port and Enclosure – Emissions Tests | CISPR11 Group 1 Class A |
Environmental Compliance Standards
| Shock & Vibration, and Bump Test | IEC 61373 |
| Operating Temperature | IEC 60068‐2‐14 |
| Cooling Test, ‐40 Deg C (96Hrs) | IEC 60068‐2‐1 |
| Dry Heat Test, 85 Deb C (96 Hrs) | IEC 60068‐2‐2 |
| Damp Heat Test, 25 Deg C t0 57 Deg C (37Hrs) | NYCTA Requirement |
| Flammability, Smoke Emission and Toxicity | ASTM E162 ASTM E662 BSS7239 |
